Name: High Performance T38 64mm Thread Uniface Carbide Button Bit For Rock Mining Blasting Quarry Top Hammer
Brand: KSQ Technologies (Beijing) Co. Ltd
SKU: T38
Price: 60.00 USD
Availability: InStock

خانه محصولات ابزار حفاری سنگ

High Performance T38 64mm Thread Uniface Carbide Button Bit For Rock Mining Blasting Quarry Top Hammer

جزئیات محصول:

محل منبع:	چین
نام تجاری:	MIROC
گواهی:	ISO
شماره مدل:	T38

پرداخت:

مقدار حداقل تعداد سفارش:	1
قیمت:	$60.00
جزئیات بسته بندی:	کیس های چوبی
زمان تحویل:	20-30
شرایط پرداخت:	L/C، D/A، D/P، T/T، وسترن یونیون
قابلیت ارائه:	3000

مخاطب

توضیحات محصول جزئیات

نام محصول:	مته راک دکمه دکمه	ویژگی:	نرخ حفاری بالا
شکل کاربید:	گنبد، بالستیک، نیمه بالستیک	نوع:	Flat، Uniface، Drop Center
کاربرد:	حفاری معدن و معدن	بسته بندی:	کیس های چوبی
برجسته کردن:	T38 carbide button bit,64mm thread rock drill bit,uniface carbide bit for mining , 64mm thread rock drill bit , uniface carbide bit for mining

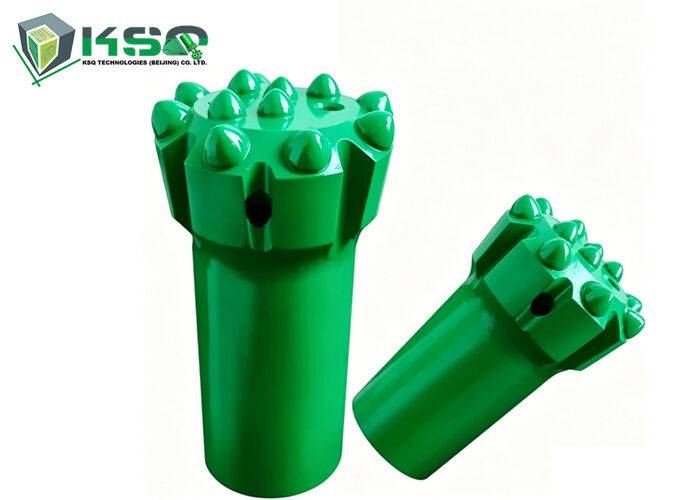

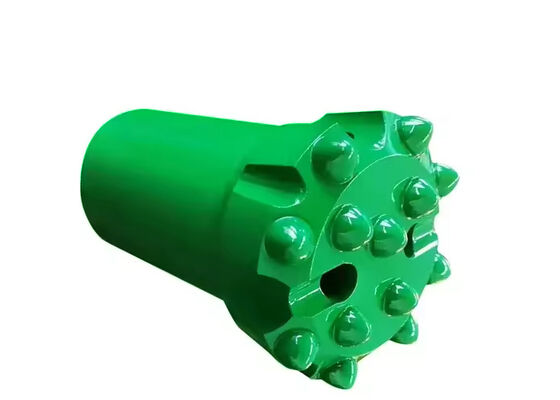

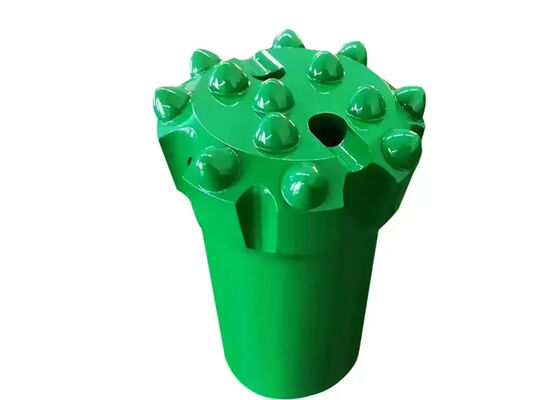

High Performance T38 64mm Thread Uniface Carbide Button Bit

Product Overview

The T38 thread button bit delivers exceptional wear resistance in medium-hard to hard and abrasive rock formations. Engineered with high-grade spherical tungsten carbide inserts, this drilling tool provides strong resistance against carbide fracture for reliable performance in demanding conditions.

Applications

Underground mining operations
Tunneling and quarrying projects
Hard rock formations including granite, basalt, and limestone

Competitive Advantages

High-grade tungsten carbide inserts - Engineered for superior hardness and impact resistance
Low operating cost - Minimal power consumption with easy installation and disassembly
Long service life - Excellent drilling penetration with strong corrosion resistance
Strict quality control - Advanced detection methods and testing equipment ensure consistent high quality

Product Specifications

Type	Specification / Keyword
Thread Type	T38
Diameter	64mm, 70mm, 76mm, 89mm
Button Type	Thread Button Bit, Uniface Button Bit, Carbide Button Bit
Application	Rock Drill Button Bit, Mining Button Bit, Blasting Button Bit, Quarry Button Bit
Tool Type	Top Hammer Bit, Rock Stone Bit
Material	High Manganese Bit, Forged Button Bit
Performance	Wear Resistant Bit, High Performance Bit, High Efficiency Bit, Durable Drill Bit
Customization	Customizable OEM Bit

T38 Thread Button Bit Detailed Specifications

Diameter	Buttons and Size (mm)	Flushing hole	Weight (kg)
64mm (2 1/2")	3×11	3	1.8
64mm (2 1/2")	4×10	2	1.6
64mm (2 1/2")	3×10, 1×10	3	1.7
70mm (2 3/4")	4×11	2	1.9
70mm (2 3/4")	4×10, 1×10	4	1.9
70mm (2 3/4")	3×10, 1×10	3	1.8
76mm (3")	4×11	2	2.4
76mm (3")	5×11	2, 1	2.4
76mm (3")	3×11, 1×11	3, 1	2.6
76mm (3")	4×11, 1×11	4	2.6
76mm (3")	4×11, 1×11	4	2.6
89mm (3 1/2")	4×13	2	3.3
89mm (3 1/2")	5×13	2	3.3
89mm (3 1/2")	6×11	2	3.3
89mm (3 1/2")	3×11, 2×11	3, 1	3.3
89mm (3 1/2")	4×11, 1×11	4	3.3
89mm (3 1/2")	4×13, 1×13	4	3.3
