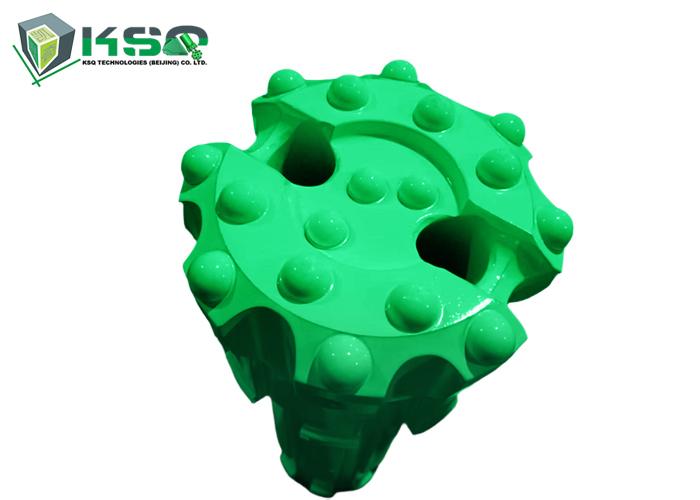

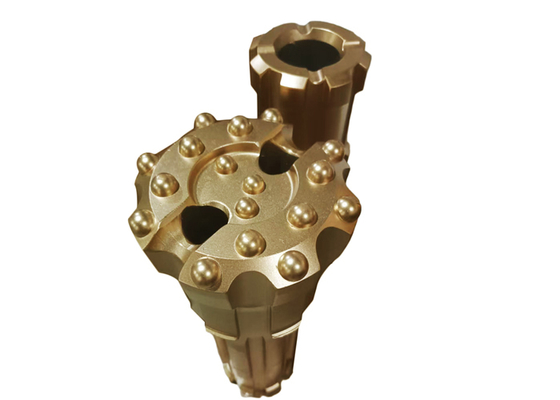

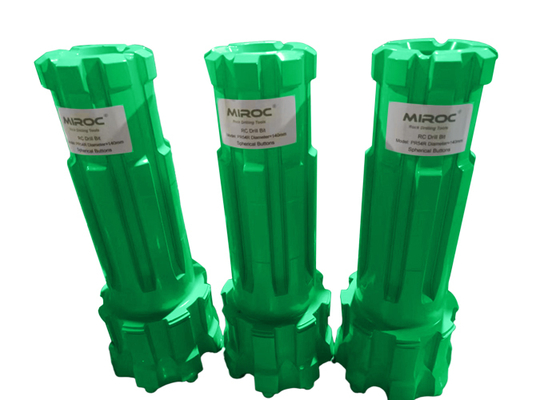

Name: PR54R RC Hammer Drill Bit for Reverse Circulation DTH Hammer
Brand: KSQ Technologies (Beijing) Co. Ltd
SKU: بیت مته چکش PR54R RC
Price: 508.50 USD
Availability: InStock

خانه محصولات ابزار حفاری سنگ

PR54R RC Hammer Drill Bit for Reverse Circulation DTH Hammer

جزئیات محصول:

محل منبع:	چین
نام تجاری:	MIROC
گواهی:	ISO
شماره مدل:	بیت مته چکش PR54R RC

پرداخت:

مقدار حداقل تعداد سفارش:	1
زمان تحویل:	20-30
قابلیت ارائه:	3000

مخاطب

توضیحات محصول جزئیات

فرآیند تولیدی:	جعل	مادی:	فولاد آلیاژ
مزیت:	کارایی	رنگ:	در هر درخواست
نام قسمت:	مته های DTH	استفاده:	سوراخ دار
برجسته کردن:	RC hammer drill bit for DTH hammer,reverse circulation drill bit for rock drilling,PR54R RC hammer bit with warranty , reverse circulation drill bit for rock drilling , PR54R RC hammer bit with warranty

PR54R RC Hammer Drill Bit for Reverse Circulation DTH Hammer

Product Specifications

Attribute	Value
Manufacturing Process	Forging
Material	Alloy Steel
Advantage	High Performance
Color	Per Request
Parts Name	DTH Drill Bits
Usage	Hole Drilling

Product Description

RC series reverse circulation DTH Hammer is mainly used for deep exploration drilling and stope ore grade control. This reverse circulation drill bits are widely used in the following application fields:

Geologic exploration samples
Oil wells and ore mining

Specifically designed to work with RC Hammers.

Available Sizes

3" RC Bits: diameter (86mm-102mm), shank (RE531)
4" RC Bits: diameter (114mm-127mm), shank (RE004, RE004R)
4.5" RC Bits: diameter (121mm-133mm), shank (RE542, RE543)
5" RC Bits: diameter (113mm-146mm), shank (RE545, PR40)
5.5" RC Bits: diameter (133-146mm), shank (RE547, PR52, PR54, RC45, AD670)

Other sizes available upon customer request. Customization available.

Technical Specifications (PR54/54R)

Diameter mm	Diameter inch	No x Button diameter	Button angle	Flushing holes	Shroud Dia mm	Weight (kg)	Part No
136	5 3/8	8 x 16mm	6x16+3x14	35	2	134	19.0	PR54-136
140	5 1/2	8 x 16mm	6x16+3x14	35	2	138	19.3	PR54-140
143	5 5/8	8 x 16mm	6x16+3x14	35	2	141	19.5	PR54-143
146	5 3/4	8 x 16mm	6x16+3x14	35	2	144	19.6	PR54-146
