| محل منبع: | چين |
| نام تجاری: | MIROC Button Bit |
| شماره مدل: | DTH Button Bit |
| مقدار حداقل تعداد سفارش: | 1 قطعه DTH Button Bit |
|---|---|
| قیمت: | Negotiation |
| جزئیات بسته بندی: | جعبه کارتن یا جعبه های چوبی |
| زمان تحویل: | 25 روز |
| شرایط پرداخت: | اعتبارات اسنادی T/T |
| قابلیت ارائه: | 20000 قطعه در هر ماه |
| نام محصول: | DTH Button Bit | Hammer Type: | DHD340 |
|---|---|---|---|
| قطر: | 64mm 70mm 76mm | رنگ: | سبز |
| برجسته: | بیت مته فرز,مخفیگاه آنان را بیت مته کاربید,dth button bits |
||

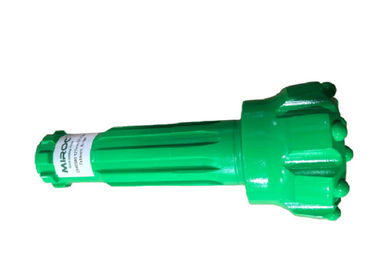

BR Series DTH Button Bit 64mm 70mm 76mm 95mm for BR1 BR2 BR3 DTH Hammer
KSQ is one the professional manufacturer and supplier of high performance rock drilling tools like DTH Hammers and Bits. PC Hammers and Bits, DTH drilling pipes and Top Hammer Drilling Tools.
Our tools are widelyused in different drilling applications including mining,quarrying, water well drilling, geotechnical industries and etc.
In DTH drilling, the rock drilling bit is a continuation of the shank, which the rock drill piston strikes directly. Since the piston is in direct contact with the drill bit, little energy is lost. This gives DTH drilling a nearly constant penetration rate regardless of hole length.
| HAMMER INCH | BIT DIA(MM) | BIT DIA(INCH) | SHANK |
| 1 | 64MM-76MM | 2 1/2"-3" | BR1 |
| 2 | 76MM-90MM | 3"-3 1/2" | BR2/PAD320 |
| 3 | 85MM-105MM | 3 2/5"-4" | BR3/DHD330/COP32/PAD330 |
| 3.5 | 85MM-110MM | 3 2/5"-4 1/3" | DHD3.5/IR3.5/COP34/QL30/PAD3.5 |
| 4 | 105MM-140MM | 4"-5 1/2" | DHD340/COP44/QL40/SD4/MISSION40/PAD340 |
| 5 | 127MM-200MM | 5"-8" | DHD350/COP54/QL50/SD5/MISSION50/PAD350 |
| 6 | 152MM-254MM | 6"-10" | DHD360/COP64/QL60/SD6/MISSION60/PAD360 |
| 8 | 195MM-350MM | 7.2/3"-13 4/5" | DHD380/COP84/QL80/SD8/MISSION80/PAD380 |
| 10 | 254MM-380MM | 10"-15" | SD10/NUMA100/DHD1100/PAD1100 |
| 12 | 305MM-457MM | 12"-18" | SD12/NUMA120/DHD1120/PAD1120 |
Bit Face Shape Selection:
Center Drop Bit:
For high penetration rates in soft to medium hard and fissured rock formations. Low to medium air pressure.
Maximum hole deviation control.
Concave Face
The all-around application bit face specifically for medium hard and homogenerous rock formations.
Good hole deviation control and good flushing capacity.
Convex Face
For high penetration rates in soft to medium-hard with low to medium air pressure. It is the most resistance to steel wash, any may reduce the load and wear on gauge buttons, but poor hole deviation control.
Double Gauge Face
This kind of face shape is suitable for fast penetration rates in medium to hard rock formations. Designed for high air pressure and good resistance to steel wash step gauge bit.
Flat Face Bit
This kind of face shape is suitable for hard to very hard and abrasive rock formation is applications with high air pressure. Good penetration rates and resistance to steel wash.
Competitive Advantage
• High-grade tungsten carbide inserts
• Bit bodies manufactured from high-grade steel and processed using state-of-the-art CNC machinery and heat treatment
We can design and manufacture the personalized products to meet your special applications, such as changing the tungsten carbide insert profile (spherical, ballistic, etc.), face profile (flat face, concave, convex, etc.), and flushing holes.
Applications
• Underground mining
• Down the hole rock drilling
KSQ Related DTH Button Bits
| Product | DTH Button Bits |
| Low Air Pressure | CIR80, CIR90 |
| 3’’ | DHD3.5, M30, |
| 4’’ | DHD340, SD4,QL40, M40 |
| 5’’ | DHD350, SD5,QL50, M50 |
| 6’’ | DHD360, SD6,QL60, M60 |
| 8’’ | DHD380, SD8,QL80, M80 |
| Color | Green, Gold, Black or based on customer requirements. |
| MOQ: | No MOQ required for testing and trial order |
Keywords
DTH BIT, DTH Button Bit, Down The Hole Button Bit, Rock Bit, Rock Drill Bit,
Low Air Pressure DTH Button Bit, High Air Pressure DTH Button Bit
In DTH drilling, the rock drilling bit is a continuation of the shank, which the rock drill piston strikes directly. Since the piston is in direct contact with the drill bit, little energy is lost. This gives DTH drilling a nearly constant penetration rate regardless of hole length.
Rock Drilling Tools Brand MIROC®
The MIROC® Rock Drilling Tools product line by KSQ Technologies (Beijing) Co.Ltd. is the result of years of advanced engineering, precision manufacturing, and dedication to the use of high-quality materials. MIROC® Rock Drilling Tools are used by many drilling professionals related to mining, construction, tunneling, and quarrying projects around the globe. MIROC® Rock Drilling Tools include:
Company Information
KSQ Technologies (Beijing) Co. Ltd. has significant experience and know-how in the supply of materials, components, finished goods, specially designed/engineered equipment, and services from China. The company caters to medium to large scale clients who are doing projects and capital expansion, as well as to firms who require support with consumable products, maintenance, and repair operations.
